HY-RDM880 13.56MHz MIFARE HF RFID Reader RS232 Module

FOB Reference Price:Get Latest Price
US $5-50 / Piece | 1 Piece/Pieces RFID Reader Module (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month RFID Reader Module
Port:
Shanghai, Shenzhen, Ningbo, Qingdao, etc.
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
RFIDHY
Model Number:
HY-RDM880
Keyword:
RFID Reader Module
Baud Rate:
9600-115200bit/s(Configurable , default 15200)
Supporting Card Category:
MIFARE 1K/4K, MIFARE Ultralight, MIFARE Pro
Support Standard:
ISO/IEC14443-A, ISO/IEC14443-B
Current:
<150mA
Interface:
USB / RS232
Sheathing Material:
ABS
Size:
118x73x15mm
Application:
Access Control, Parking Lot, Identification, Ladder Control, etc.
Web:
www.rfidhy.com
Packaging & Delivery
Packaging Details
1 piece in a sigle box, 100pcs per carton
Delivery Time
3~10 days after receipt of payment

HY-RDM880 13.56MHz MIFARE HF RFID Reader RS232 Module

Product Description



Product Description

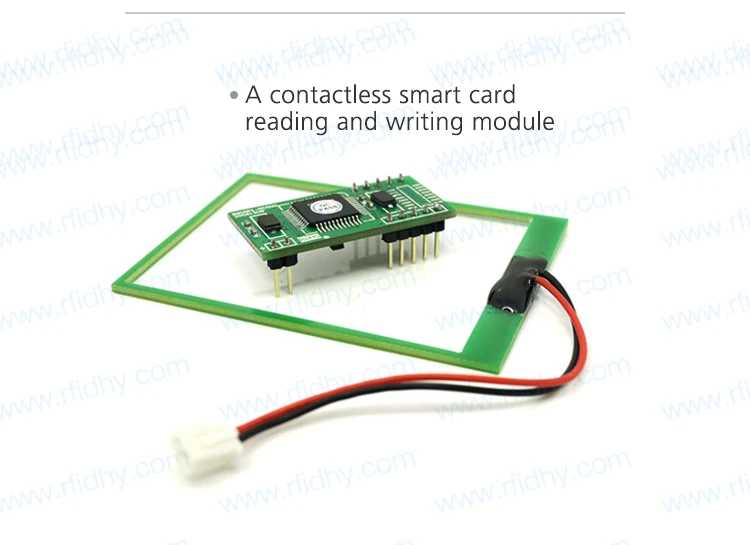

HY-RDM880 Series module is a contactless smart card reading and writing module developed based on ISO/IEC14443 -1, -2, -3, -4 and ISO15693 international standard protocols. It adopts highly integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size and more stable performance.

Dimensions38.5x19x9mm
Frequency13.56MHz
Read-write ChipMFRC500,MFRC400,MFRC531,MFRC632
Baud Rate9600-115200bit/s (Configurable , default 9600)
Support StandardISO/IEC14443-A, ISO/IEC14443-B, ISO/IEC 15693
Sheathing MaterialABS
Supporting Card CategoryMifare One S50, Mifare One Ultralight, MifareOneS70, MifarePro, AT88RF020, 66CL160S, SR176, SRIX4K, I-code2, TI RFID Tag-it HF-I, EM4135, EM4034
Power Supply/CurrentDC 5V/3.3V(±5%) / < 70mA
InterfaceRS232, RS485, TTL
Working Distance>50mm(Depending on label size and antenna technology)
Operating Temperature-10℃ to +70℃
Storage Temperature-20℃ to +80℃
ApplicationsAccess Control, Attendance Management, Parking Lot, Identification, Ladder Control, etc.
Professional RFID Reader Module Factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality. www.rfidhy.com ; marketing @rfidhy.com

Applications

> Access Control

> Attendance Management

> Parking Lot

> Identification

> Ladder Control

Click for More Information !!!

Key Features



Model Description:
Order modelSupporting Card
HY-RDM880-S-XRS232 Interface

HY-RDM880-R-X

RS485 Interface

HY-RDM880-T-X

TTL Interface

 Good RFID Reader Module Factory Supplier save you time and money, help your win market.

Contact us: marketing @rfidhy.com



Click for More Information !!!

Company Information

When the Smart Card industry kicked off in mainland China 20 years ago, RFIDHY were at the forefront. In 1995, we began by producing plastic magnetic cards. We are the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line. Our products line covered Plastic card, Smart cards, Contactless cards, RFID inlay and RFID products tags with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration manufactures, but also development. Our success in oversea market was apparent – from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.



RFIDHY had also established good and strategic partnership with many international leaders in Smart Card and RFID industry.



Our owned subsidiary locates in Shenzhen (Shenzhen Huayuan Smart Technologies Co., Ltd) have full sets of production line of RFID Products which have been approved by IC certification and ISO9001:2008 certification.



Now hundreds of millions of pieces of RFID products have been supplied to our clients and partners around the world which have widely been used to public transportation, retail, library, transportation, NFC and more.



Our Advantages:

  1. 22 years’ experience in rfid and nfc products manufacturing.
  2. 12 years of experience in International trade, serving customers with more than 100 countries and regions.
  3. Short delivery time, stock delivers in 2 or 3 days.
  4. Strong technical strength, can quickly resolve customer problems.
  5. Also, OEM/ODM service are available.
